An Overview of the Android Architecture Android 12.05.2018

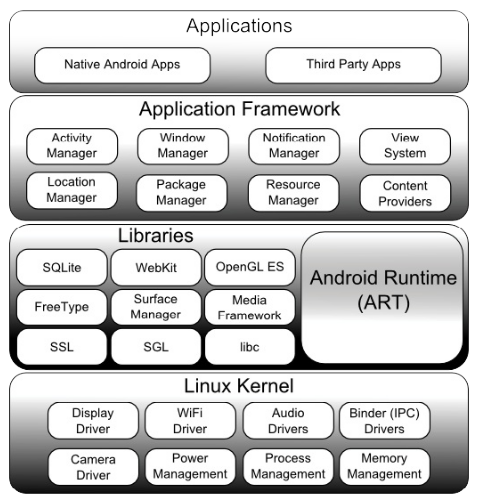

Android is structured in the form of a software stack comprising applications, an operating system, run-time environment, middleware, services and libraries.


Each layer of the stack, and the corresponding elements within each layer, are tightly integrated and carefully tuned to provide the optimal application development and execution environment for mobile devices.

The Linux Kernel

Positioned at the bottom of the Android software stack, the Linux Kernel provides a level of abstraction between the device hardware and the upper layers of the Android software stack. The kernel provides preemptive multitasking, low-level core system services such as memory, process and power management in addition to providing a network stack and device drivers for hardware such as the device display, Wi-Fi and audio.

Android Runtime - ART

When an Android app is built within Android Studio it is compiled into an intermediate bytecode format (referred to as DEX format). When the application is subsequently loaded onto the device, the Android Runtime (ART) uses a process referred to as Ahead-of-Time (AOT) compilation to translate the bytecode down to the native instructions required by the device processor. This format is known as Executable and Linkable Format (ELF).

Each time the application is subsequently launched, the ELF executable version is run, resulting in faster application performance and improved battery life.

This contrasts with the Just-in-Time (JIT) compilation approach used in older Android implementations whereby the bytecode was translated within a virtual machine (VM) each time the application was launched.

Android Libraries

In addition to a set of standard Java development libraries (providing support for such general purpose tasks as string handling, networking and file manipulation), the Android development environment also includes the Android Libraries. These are a set of Java-based libraries that are specific to Android development. Examples of libraries in this category include the application framework libraries in addition to those that facilitate user interface building, graphics drawing and database access.

A summary of some key core Android libraries available to the Android developer is as follows:

  • android.app – Provides access to the application model and is the cornerstone of all Android applications.
  • android.content – Facilitates content access, publishing and messaging between applications and application components.
  • android.database – Used to access data published by content providers and includes SQLite database management classes.
  • android.graphics – A low-level 2D graphics drawing API including colors, points, filters, rectangles and canvases.
  • android.hardware – Presents an API providing access to hardware such as the accelerometer and light sensor.
  • android.opengl – A Java interface to the OpenGL ES 3D graphics rendering API.
  • android.os – Provides applications with access to standard operating system services including messages, system services and inter-process communication.
  • android.media – Provides classes to enable playback of audio and video.
  • android.net – A set of APIs providing access to the network stack. Includes android.net.wifi, which provides access to the device’s wireless stack.
  • android.print – Includes a set of classes that enable content to be sent to configured printers from within Android applications.
  • android.provider – A set of convenience classes that provide access to standard Android content provider databases such as those maintained by the calendar and contact applications.
  • android.text – Used to render and manipulate text on a device display.
  • android.util – A set of utility classes for performing tasks such as string and number conversion, XML handling and date and time manipulation.
  • android.view – The fundamental building blocks of application user interfaces.
  • android.widget - A rich collection of pre-built user interface components such as buttons, labels, list views, layout managers, radio buttons etc.
  • android.webkit – A set of classes intended to allow web-browsing capabilities to be built into applications.

Having covered the Java-based libraries in the Android runtime, it is now time to turn our attention to the C/C++ based libraries contained in this layer of the Android software stack.

C/C++ Libraries

The Android runtime core libraries outlined in the preceding section are Java-based and provide the primary APIs for developers writing Android applications. It is important to note, however, that the core libraries do not perform much of the actual work and are, in fact, essentially Java "wrappers" around a set of C/C++ based libraries. When making calls, for example, to the android.opengl library to draw 3D graphics on the device display, the library actually ultimately makes calls to the OpenGL ES C++ library which, in turn, works with the underlying Linux kernel to perform the drawing tasks.

C/C++ libraries are included to fulfill a wide and diverse range of functions including 2D and 3D graphics drawing, Secure Sockets Layer (SSL) communication, SQLite database management, audio and video playback, bitmap and vector font rendering, display subsystem and graphic layer management and an implementation of the standard C system library (libc).

In practice, the typical Android application developer will access these libraries solely through the Java based Android core library APIs. In the event that direct access to these libraries is needed, this can be achieved using the Android Native Development Kit (NDK), the purpose of which is to call the native methods of non-Java or Kotlin programming languages (such as C and C++) from within Java code using the Java Native Interface (JNI).

Application Framework

The Application Framework is a set of services that collectively form the environment in which Android applications run and are managed. This framework implements the concept that Android applications are constructed from reusable, interchangeable and replaceable components.

This concept is taken a step further in that an application is also able to publish its capabilities along with any corresponding data so that they can be found and reused by other applications.

The Android framework includes the following key services:

  • Activity Manager – Controls all aspects of the application lifecycle and activity stack.
  • Content Providers – Allows applications to publish and share data with other applications.
  • Resource Manager – Provides access to non-code embedded resources such as strings, color settings and user interface layouts.
  • Notifications Manager – Allows applications to display alerts and notifications to the user.
  • View System – An extensible set of views used to create application user interfaces.
  • Package Manager – The system by which applications are able to find out information about other applications currently installed on the device.
  • Telephony Manager – Provides information to the application about the telephony services available on the device such as status and subscriber information.
  • Location Manager – Provides access to the location services allowing an application to receive updates about location changes.

Applications

Located at the top of the Android software stack are the applications. These comprise both the native applications provided with the particular Android implementation (for example web browser and email applications) and the third party applications installed by the user after purchasing the device.
